The all-in-one solar street light

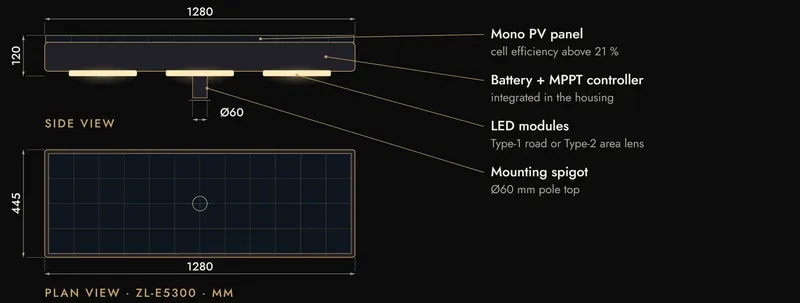

Panel, battery, controller and LED module share one housing on a Ø60 mm spigot. One unit, no boxes and no cabling at the pole head.
pole heights
light output
solar panel
nights of autonomy as standard
Pathways, car parks, campuses and residential streets on 3–8 m poles. Up to 50 W; above that, choose ZILA.
ZILE · The all-in-one solar street light
Choose the model for your pole height.
ZL-E2000
- Light
- 2 000 lm
- LED
- 15 W
- Solar
- 40 Wp
- Battery
- 12.8 V · 12 Ah · 154 Wh
- Pole
- 3–4 m
- 760 × 300 × 95 mm
ZL-E2700
- Light
- 2 700 lm
- LED
- 20 W
- Solar
- 50 Wp
- Battery
- 12.8 V · 16 Ah · 205 Wh
- Pole
- 3–5 m
- 900 × 320 × 100 mm
ZL-E4000
- Light
- 4 000 lm
- LED
- 30 W
- Solar
- 80 Wp
- Battery
- 12.8 V · 24 Ah · 307 Wh
- Pole
- 4–6 m
- 1130 × 405 × 110 mm
ZL-E5300
- Light
- 5 300 lm
- LED
- 40 W
- Solar
- 100 Wp
- Battery
- 12.8 V · 32 Ah · 410 Wh
- Pole
- 5–7 m
- 1280 × 445 × 120 mm
ZL-E6700
- Light
- 6 700 lm
- LED
- 50 W
- Solar
- 125 Wp
- Battery
- 12.8 V · 40 Ah · 512 Wh
- Pole
- 6–8 m
- 1460 × 490 × 130 mm
How we size it. Ratings are sized at 4 peak sun hours a day in the weakest month, for two nights of autonomy. For sites with 2.5–3.5 sun hours we add 30 % more solar and a third night of battery; below 2.5 sun hours, 70 % more solar or a hybrid supply. Send us the site and we confirm the system with a calculation.
What is inside every system.
- LED efficacy up to 160 lm/W, CRI above 70, 4000 K as standard (3000–6000 K on request)
- Type-1 road or Type-2 area optics; LED life above 50 000 h; constant-current driver, 94 % efficient
- Monocrystalline PV, cells above 21 % efficiency, IEC 61215 · 61730-1 · 61701, 20-year life
- LiFePO4 battery, two nights of autonomy as standard; MPPT controller, 97.3 % efficient
- IP67 system, IP68 LED module; operating 0 to +50 °C, −20 to +60 °C on request
- Hot-dip galvanized steel poles, RAL 7016 as standard, any RAL on request
5-year warranty on ZOLARIS systems · ISO 9001 · CE, RoHS and IEC test reports on request
Control and monitoring
Standard
Dusk-to-dawn operation with a time-based dimming profile, in every model.
Presence
Dims when the area is empty and returns to full light on movement (sensor in the luminaire).
LoRaWAN
Remote monitoring and dimming of each light: 50 to 2 000 lights per ZG-LW gateway, with a dashboard and app.
4G
The same remote monitoring for single lights, with no gateway.
Other Smart Solar families
Panel on top of the poleZILAThe split solar street light2 000–16 000 lm
Panel on top of the poleZILUThe post-top solar lantern1 300–4 000 lm
Panel built into the poleZILOThe pole is the solar panel2 700–24 000 lm
Panel built into the poleZILIRound columns and retrofit sleeves2 000–8 000 lm
Panel built into the poleZILBThe solar bollard for paths400–1 050 lm
Panel built into the poleZILSSmart poles that see, speak and connect16 000–24 000 lmSend us the site. We return the system.
Location, pole height and the area to light are enough. We size the solar, battery and light for your site and send part numbers and an offer.
