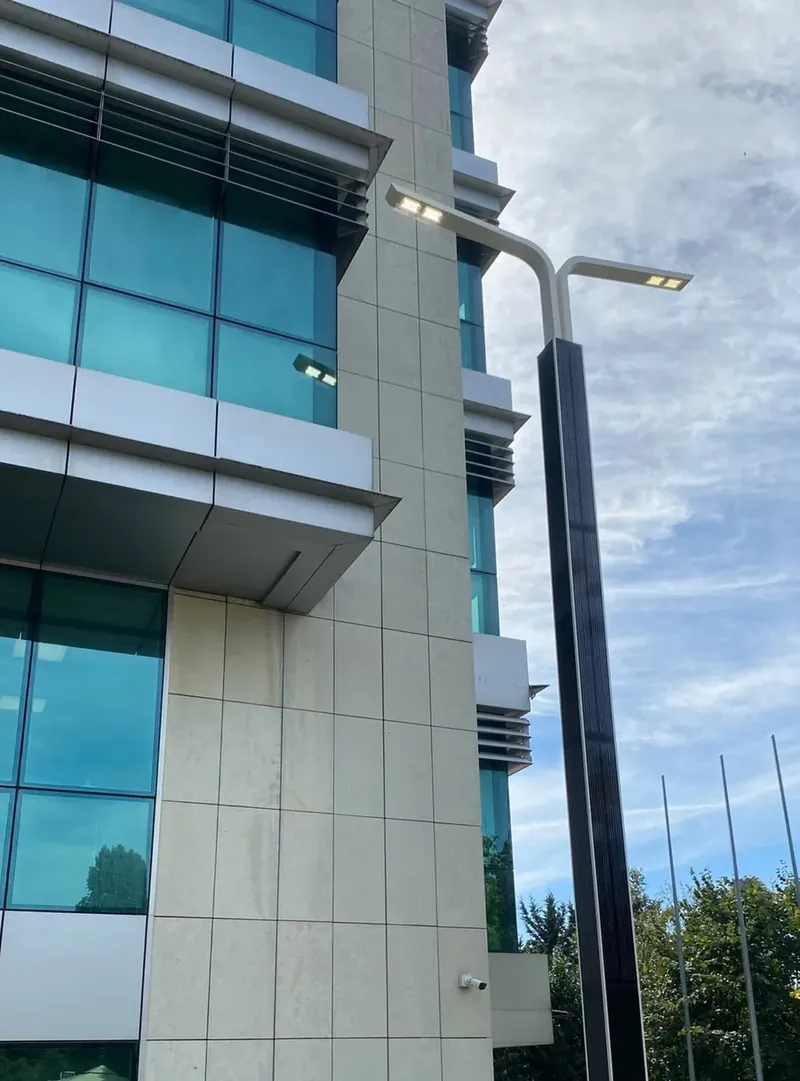

The pole is the solar panel
Monocrystalline modules wrap the shaft, so nothing sits on top of the pole. Battery and controller are inside the column, and one or two arms hang from a slim head. Heights from 6 to 12 m in 1 m steps.
pole heights
light output
solar panel
nights of autonomy as standard
Avenues, plazas, campuses and car parks where design matters. T2-S doubles the battery for four nights in low-sun regions.
ZILO · The pole is the solar panel

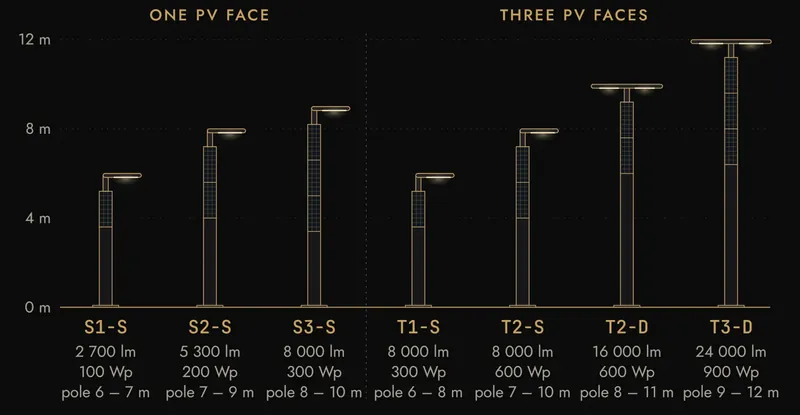

Choose the model for your pole height.
ZILO S1-S
- Light
- 2 700 lm
- LED
- 20 W
- Solar
- 100 Wp
- Battery
- 12.8 V · 16 Ah · 205 Wh
- Pole
- 6–7 m
ZILO S2-S
- Light
- 5 300 lm
- LED
- 40 W
- Solar
- 200 Wp
- Battery
- 12.8 V · 32 Ah · 410 Wh
- Pole
- 7–9 m
ZILO S3-S
- Light
- 8 000 lm
- LED
- 60 W
- Solar
- 300 Wp
- Battery
- 12.8 V · 48 Ah · 614 Wh
- Pole
- 8–10 m
ZILO T1-S
- Light
- 8 000 lm
- LED
- 60 W
- Solar
- 300 Wp
- Battery
- 12.8 V · 48 Ah · 614 Wh
- Pole
- 6–8 m
ZILO T2-S
- Light
- 8 000 lm
- LED
- 60 W
- Solar
- 600 Wp
- Battery
- 12.8 V · 96 Ah · 1 229 Wh
- Pole
- 7–10 m
ZILO T2-D
- Light
- 16 000 lm
- LED
- 120 W
- Solar
- 600 Wp
- Battery
- 12.8 V · 96 Ah · 1 229 Wh
- Pole
- 8–11 m
ZILO T3-D
- Light
- 24 000 lm
- LED
- 180 W
- Solar
- 900 Wp
- Battery
- 25.6 V · 72 Ah · 1 843 Wh
- Pole
- 9–12 m
How we size it. Ratings are sized at 4 peak sun hours a day in the weakest month, for two nights of autonomy. For sites with 2.5–3.5 sun hours we add 30 % more solar and a third night of battery; below 2.5 sun hours, 70 % more solar or a hybrid supply. Send us the site and we confirm the system with a calculation.
What is inside every system.
- LED efficacy up to 160 lm/W, CRI above 70, 4000 K as standard (3000–6000 K on request)
- Type-1 road or Type-2 area optics; LED life above 50 000 h; constant-current driver, 94 % efficient
- Monocrystalline PV, cells above 21 % efficiency, IEC 61215 · 61730-1 · 61701, 20-year life
- LiFePO4 battery, two nights of autonomy as standard; MPPT controller, 97.3 % efficient
- IP67 system, IP68 LED module; operating 0 to +50 °C, −20 to +60 °C on request
- Hot-dip galvanized steel poles, RAL 7016 as standard, any RAL on request
5-year warranty on ZOLARIS systems · ISO 9001 · CE, RoHS and IEC test reports on request
Control and monitoring
Standard
Dusk-to-dawn operation with a time-based dimming profile, in every model.
Presence
Dims when the area is empty and returns to full light on movement (sensor in the luminaire).
LoRaWAN
Remote monitoring and dimming of each light: 50 to 2 000 lights per ZG-LW gateway, with a dashboard and app.
4G
The same remote monitoring for single lights, with no gateway.
Other Smart Solar families

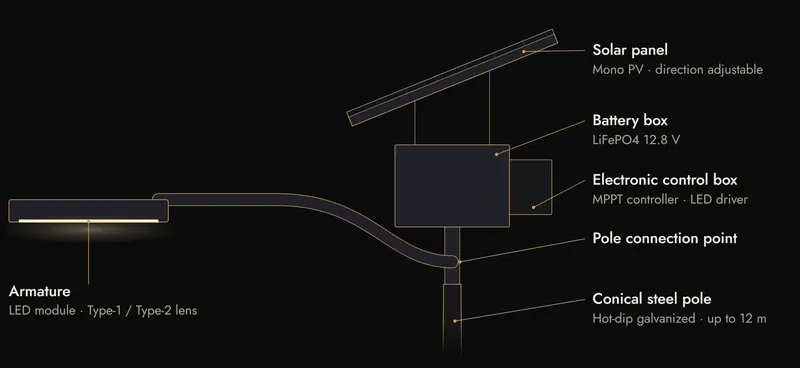

Panel on top of the poleZILAThe split solar street light2 000–16 000 lm

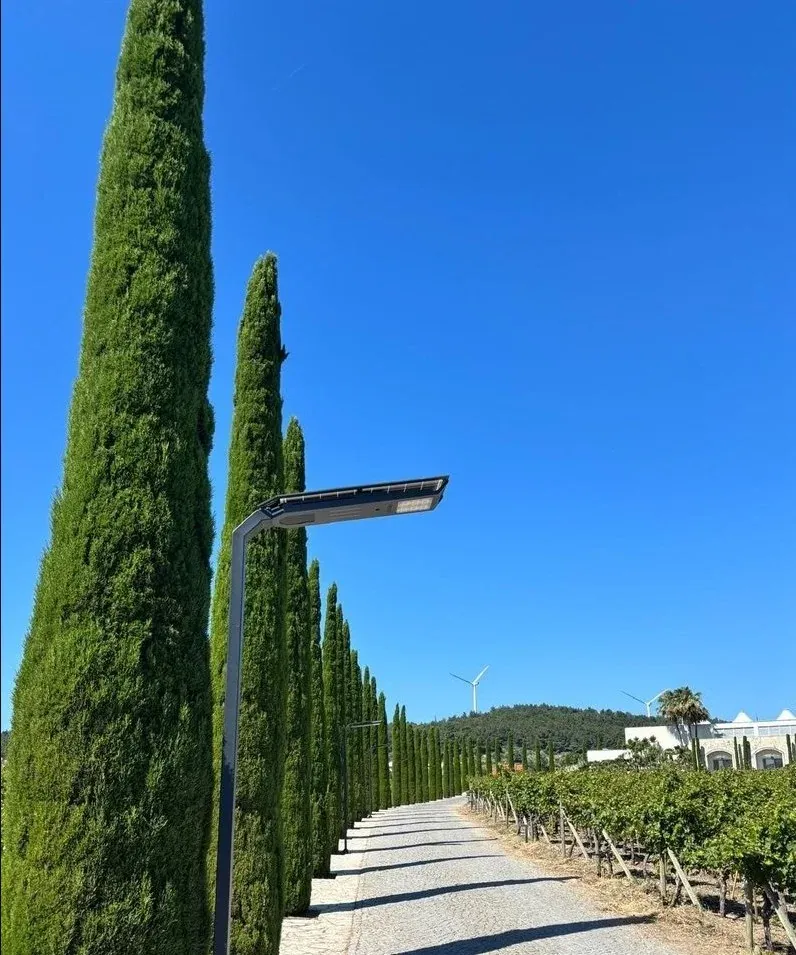

Panel on top of the poleZILEThe all-in-one solar street light2 000–6 700 lm

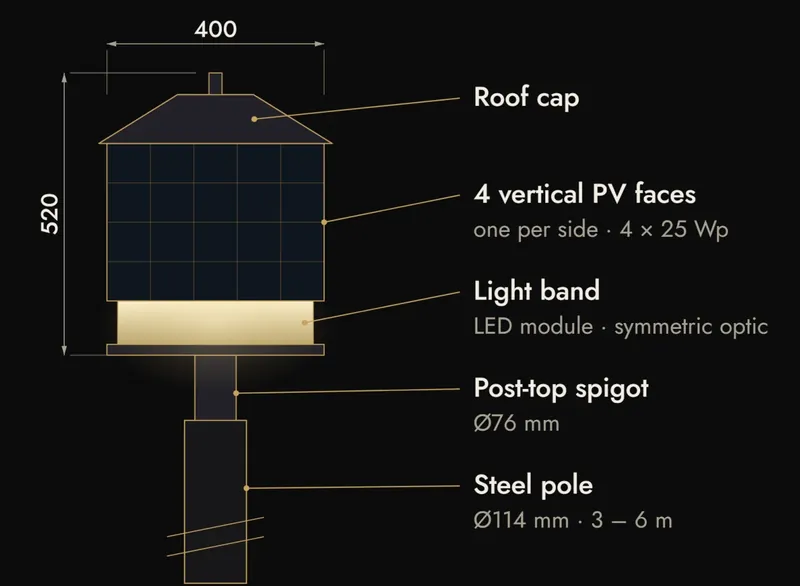

Panel on top of the poleZILUThe post-top solar lantern1 300–4 000 lm

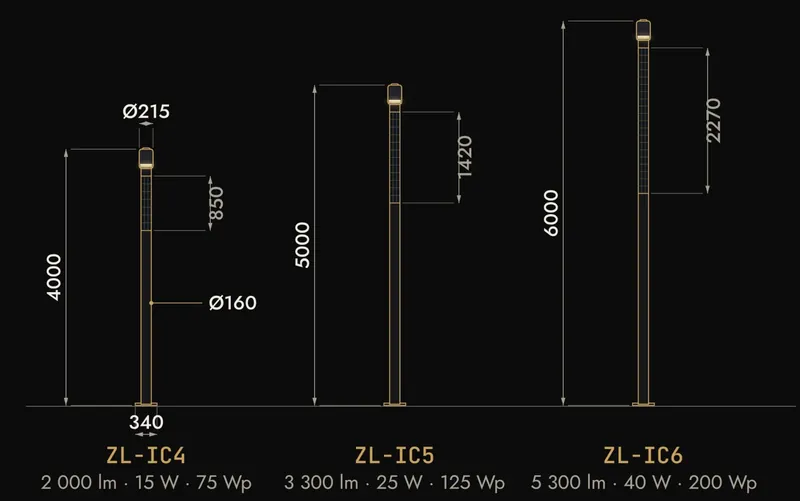

Panel built into the poleZILIRound columns and retrofit sleeves2 000–8 000 lm

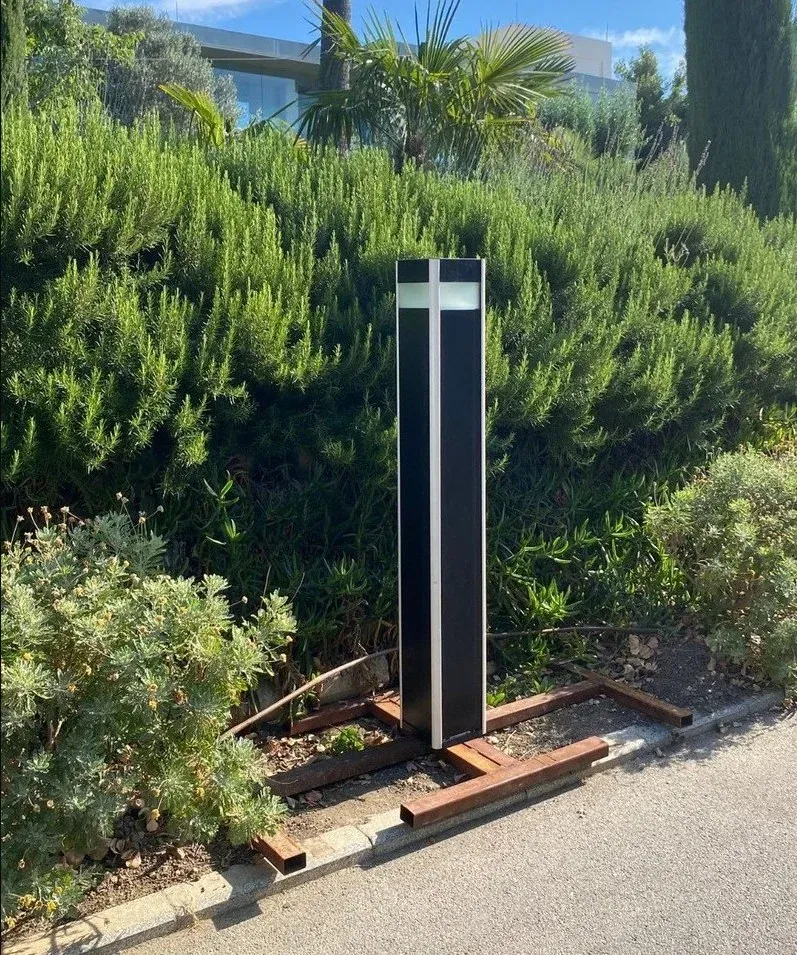

Panel built into the poleZILBThe solar bollard for paths400–1 050 lm

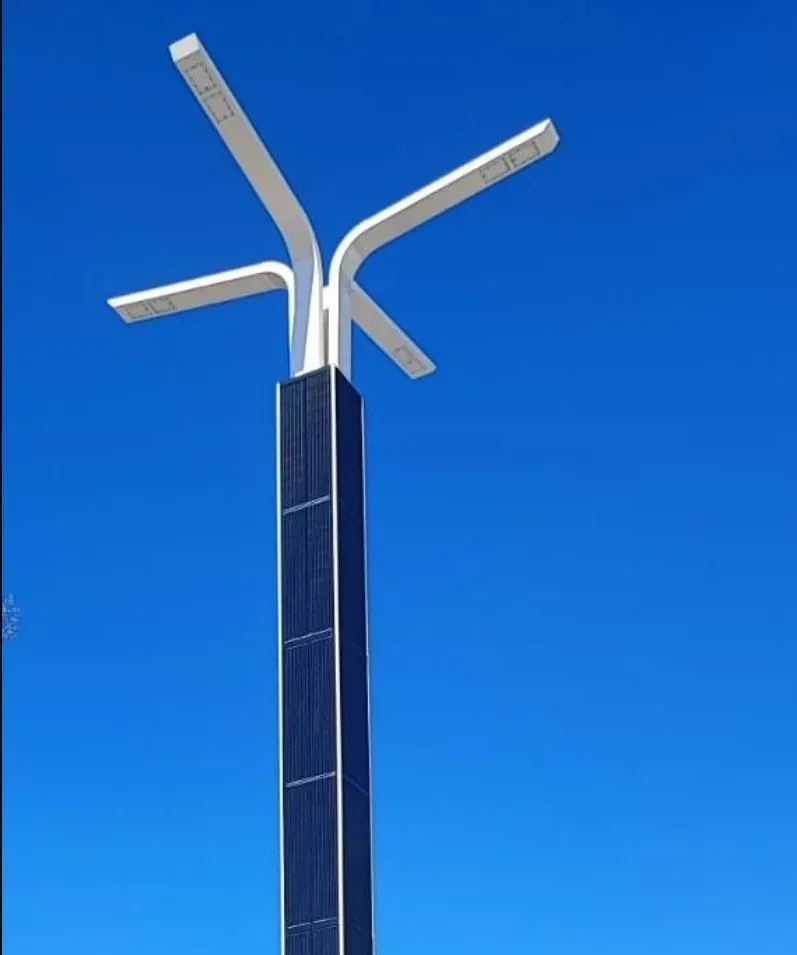

Panel built into the poleZILSSmart poles that see, speak and connect16 000–24 000 lmSend us the site. We return the system.
Location, pole height and the area to light are enough. We size the solar, battery and light for your site and send part numbers and an offer.
